Providing streamlined RFID conversion across the library
Get in Touch

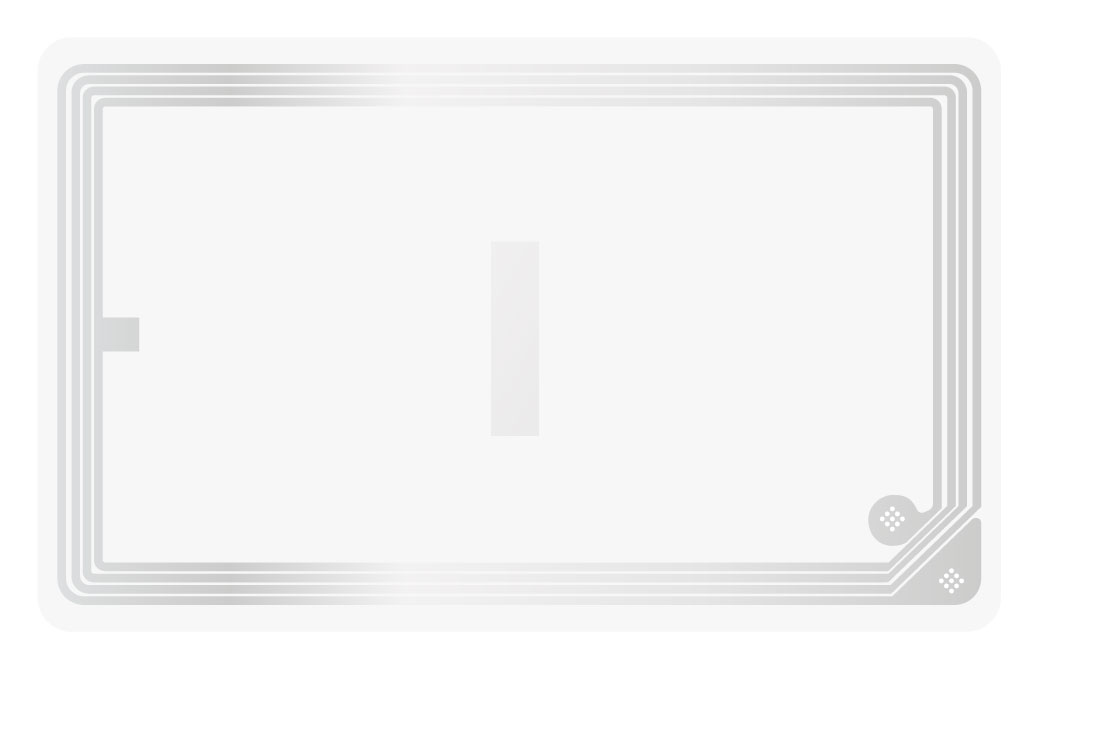

rfidTAG RACETRACK



RACETRACK tags are rectangular in shape for enhanced detectability. These are our recommended tags for reliability and detection.

The first step to successful RFID conversion is choosing tags that deliver fast, reliable performance. Every tag sold by Tech Logic is guaranteed for the entire lifecycle of the item to which it is affixed.

Learn more about rfidTAG RACETRACK
Base Material
White semi-gloss paper (thermal transfer printable) or clear PET
Aluminum-etched antenna
Specialized substrate for various applications
Optional ISO 9706 paper, high gloss paper, clear PET, PP, or specialized label materials for specific applications
Adhesive and Liner
Acrylic adhesive on release paper liner
Chip Memory
NXP ICODE SLIX2 SLS2602 w/ 2560 bits memory/2528 bits user memory
NXP ICODE SLIX SL2S2002 w/ 1024 bits memory/896 bits user memory
Delivery Form
Label face-out on unwinding direction
AFI (Application Family Identifier)
For multi-application support and/or check-in/checkout library item control
Usable in plain mode or 32-bit password protected
EAS (Electronic Article Surveillance)
On-board feature to prevent shoplifting or pilferage of books, CD’s or DVD’s
Usable in plain mode or 32-bit password protected
Product Quality
Electrical inspection on 100% of units
Reliability
Thermal cycle test 100 cycles under -55º to 85ºC (-67º to 185ºF) 15 mins dwell
Thermal humidity test 168 hours under 85ºC (185ºF), 85% RH
Product Thickness
0.32mm
ESD
+2KV maximum peak, human body model (HBM) accordingly to chip specification
Product Options
Clear PET Printed artwork (library logos for ownership marking)
Barcode (single or dual, for “buddy labels”)
Chip encoding with static or dynamic information
Operation Temperatures
-4º ~ 158ºF, at <60% RH (according to and limited by chip specifications)

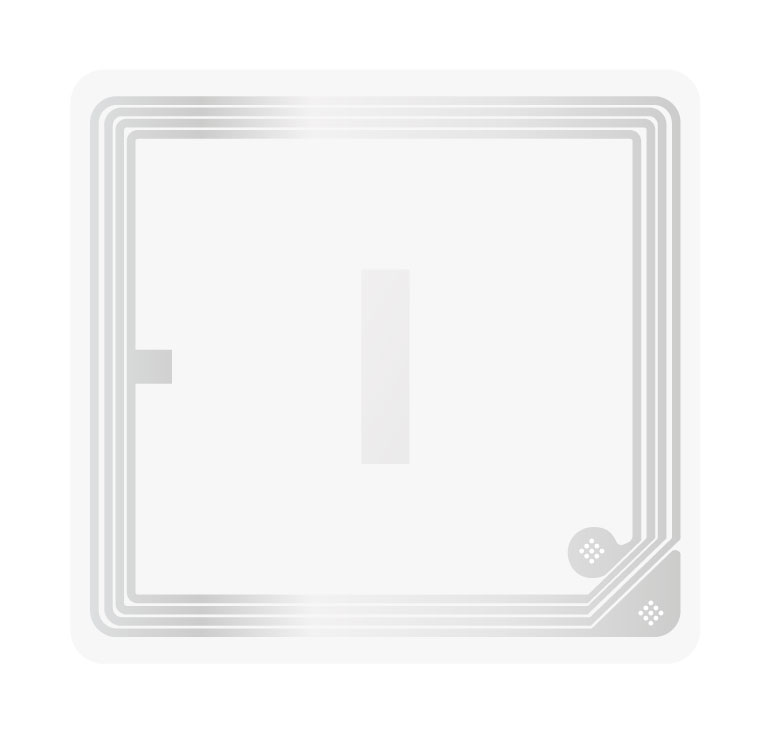

rfidTAG BOOKLITE

Your RFID tags are the key to faster transactions, better shelf management, and improved item security using RFID capabilities.

BOOKLITE tags are our most economical offering, while remaining reliable when it comes to detectability and longevity. Every tag sold by Tech Logic is guaranteed for the entire lifecycle of the item to which it is affixed.


Learn more about rfidTAG BOOKLITE
Base Material
White semi-gloss paper (thermal transfer printable) or clear PET
Aluminum-etched antenna
Specialized substrate for various applications
Optional ISO 9706 paper, high gloss paper, clear PET, PP, or specialized label materials for specific applications
Adhesive and Liner
Acrylic adhesive on release paper liner
Chip Memory
NXP ICODE SLIX2 SLS2602 w/ 2560 bits memory/2528 bits user memory
NXP ICODE SLIX SL2S2002 w/ 1024 bits memory/896 bits user memory
Delivery Form
Label face-out on unwinding direction
AFI (Application Family Identifier)
For multi-application support and/or check-in/checkout library item control
Usable in plain mode or 32-bit password protected
EAS (Electronic Article Surveillance)
On-board feature to prevent shoplifting or pilferage of books, CD’s or DVD’s
Usable in plain mode or 32-bit password protected
Product Quality
Electrical inspection on 100% of units
Reliability
Thermal cycle test 100 cycles under -55º to 85ºC (-67º to 185ºF) 15 mins dwell
Thermal humidity test 168 hours under 85ºC (185ºF), 85% RH
Product Thickness
0.32mm
ESD
+2KV maximum peak, human body model (HBM) accordingly to chip specification
Product Options
Clear PET Printed artwork (library logos for ownership marking)
Barcode (single or dual, for “buddy labels”)
Chip encoding with static or dynamic information
Operation Temperatures
-4º ~ 158ºF, at <60% RH (according to and limited by chip specifications)

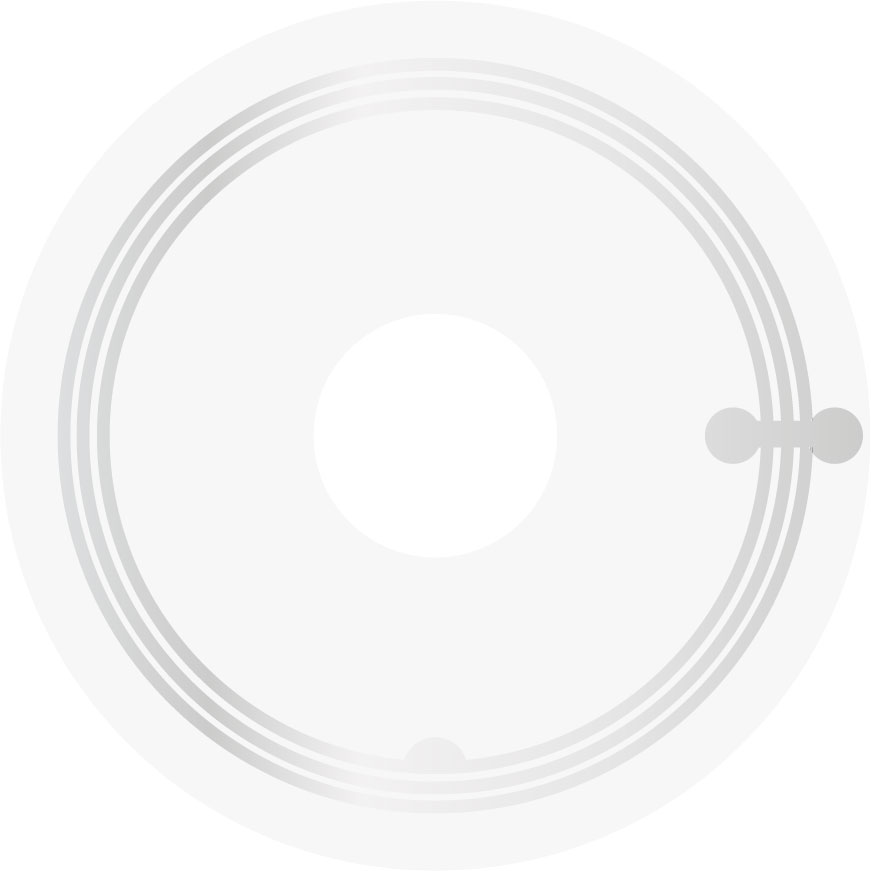

rfidTAG X-RANGE



X-RANGE tags are high-performing AV/Overlay Tags for CDs and DVDs. We recommend these tags because of their high detectability.

Tech Logic has worked with hundreds of libraries to complete RFID conversions, and so we are confident that our rfidTAG units exceed industry standards. Every tag sold by Tech Logic is guaranteed for the entire lifecycle of the item to which it is affixed.

Learn more about rfidTAG X-RANGE
Base Material
Clear PET
Aluminum-etched antenna
Specialized substrate for various applications
Optional ISO 9706 paper, high gloss paper, PP, or specialized label materials for specific applications
Adhesive and Liner
Acrylic adhesive on release paper liner
Chip Memory
NXP ICODE SLIX2 SLS2602 w/ 2560 bits memory/2528 bits user memory
NXP ICODE SLIX SL2S2002 w/ 1024 bits memory/896 bits user memory
Delivery Form
Label face-in unwinding direction
AFI (Application Family Identifier)
For multi-application support and/or check-in/checkout library item control
Usable in plain mode or 32-bit password protected
EAS (Electronic Article Surveillance)
On-board feature to prevent shoplifting or pilferage of books, CD’s or DVD’s
Usable in plain mode or 32-bit password protected
Product Quality
Electrical inspection on 100% of units
Reliability
Thermal cycle test 100 cycles under -55º to 85ºC (-67º to 185ºF) 15 mins dwell
Thermal humidity test 168 hours under 85ºC (185ºF), 85% RH
Product Thickness
0.38mm
ESD
+2KV maximum peak, human body model (HBM) accordingly to chip specification
Product Options
Printed artwork (library logos for ownership marking)
Barcode (single or dual, for “buddy labels”)
Chip encoding with static or dynamic information
Operation Temperatures
-4º ~ 158ºF, at <60% RH (according to and limited by chip specifications)
staffCIRC PRO

Our staffCIRC PRO units can serve as tagging stations during conversion and also serve as reliable RFID tagging stations for the library's ongoing procurement of new items.

No Internet Required
For RFID tag reading and writing (without circulation) the staffCIRC PRO does not require a connection with the ILS.

Simple Workflow
Just place an RFID tag on the antenna, scan an item’s barcode, and adhere the RFID tag to the item. You're done.

Watching for Weeds
Staff can upload weed lists to the software so that, if an item that is listed for weeding is scanned, the staffCIRC PRO will alert the user without programming the RFID tag.

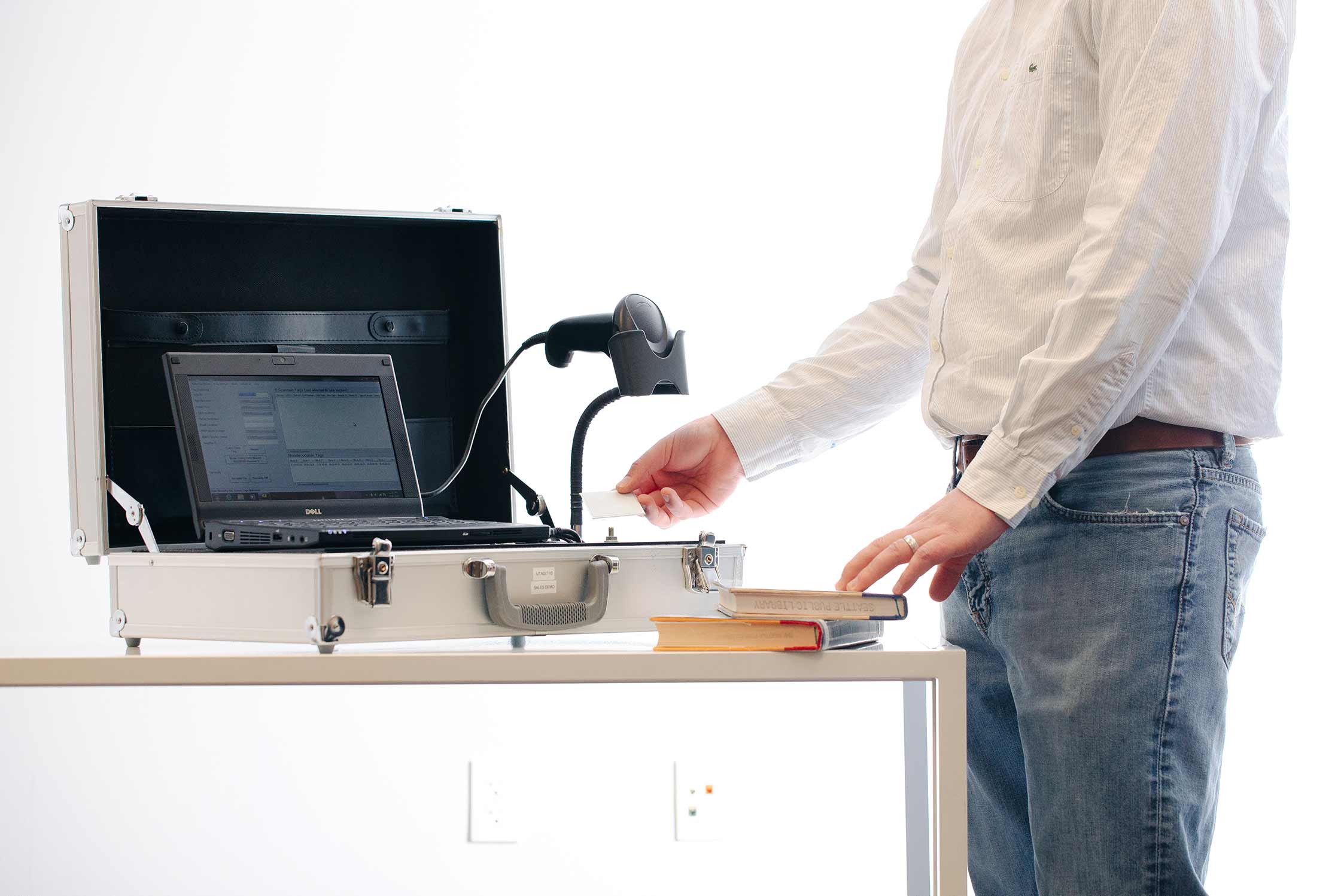

rfidTAG CASE

Using the same RFID read/write software found in our staffCIRC PRO workstation, the rfidTAG CASE conversion system empowers staff and community volunteers to with an exceptionally simple workflow that requires no ILS connection. Simply place the RFID tag onto the antenna, scan the item’s barcode, and apply the tag to the item.

When a library decides to conduct its own RFID conversion, our most common recommendation is that the library rent the rfidTAG CASE temporarily (typically for about three months) to streamline the project.

Portable and Secure
The entire rfidTAG CASE system is secured in a hard-sided aluminum case with handles for easy transport.

Watching for Weeds
Staff can upload weed lists to the software so that, if an item that is listed for weeding is scanned, the rfidTAG CASE will alert the user without programming the RFID tag.

Extra Batteries
With 4-6 hours of standard run time, rfidTAG CASE also offers an additional external battery—delivering up to 4 additional hours before recharge.

Learn more about rfidTAG CASE
Tags
ISO 15693, ISO 18000-3
Barcode Scanner
Linear imager
All library barcode symbologies
Computer
Dell Lattitude (or similar); Windows 10
Battery powered for optimal mobility
Power supply included
RFID Equipment
13.56 MHz HF Reader (0.5W)
ISO 15693, ISO 18000-3; Multi-Item capacity
Reporting
Centralized administrative reporting via Tech Logic baseCAMP (coming soon)

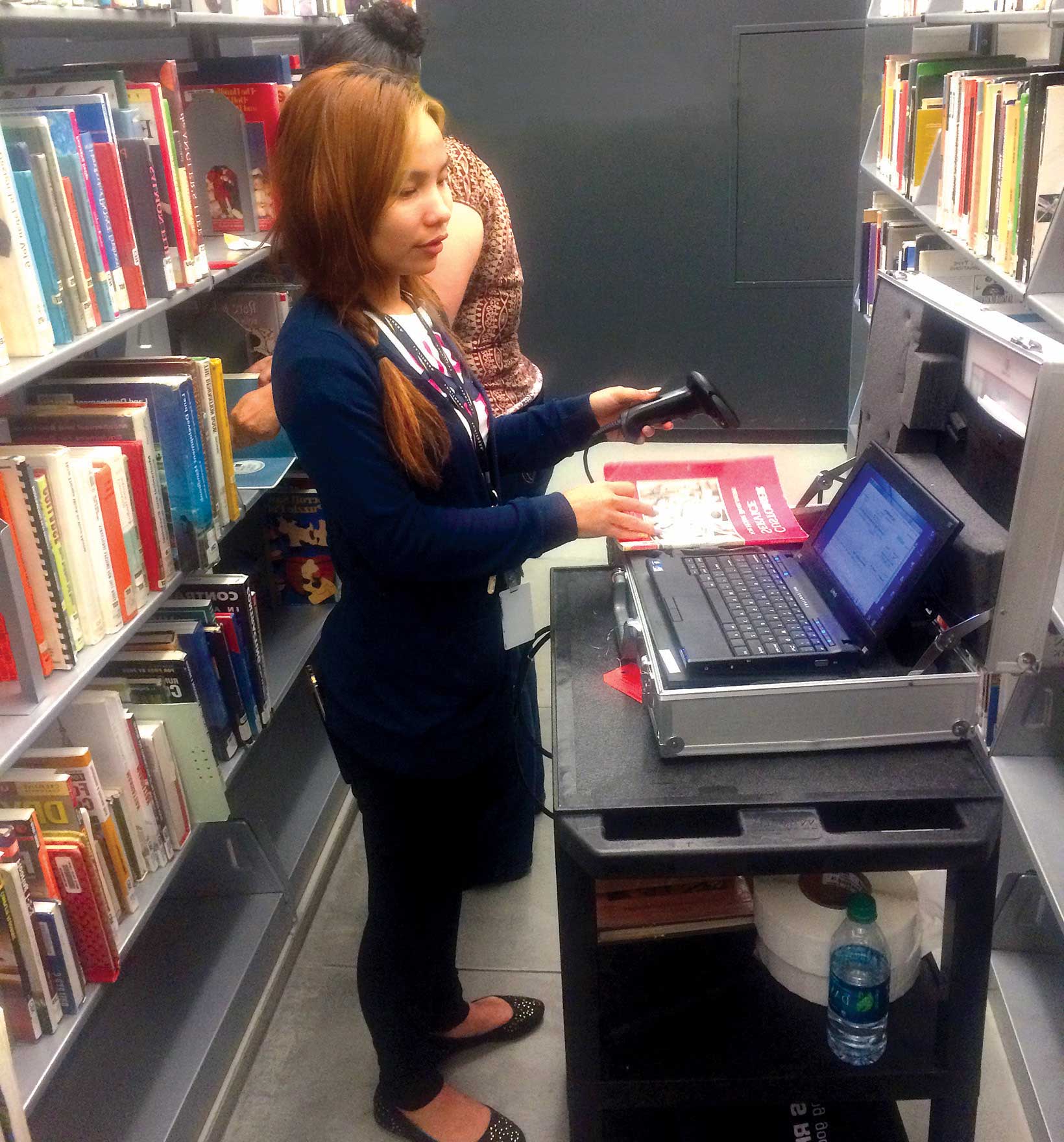

rfidTAG TEAM

For more than 25 years, Tech Logic has been working exclusively with libraries to implement RFID technologies, and our rfidTAG TEAM can implement your RFID conversion from start to finish.  We’ll make sure conversion is completed on-time, on-budget, and in-sync with other project elements.

Project Planning
Tech Logic will provide a project manager who works with you to establish and maintain a thorough project plan for the entire conversion.

Localized Staffing
Tech Logic works with a number of organizations across the country to source, train, and manage a conversion staff that is local to your library.

Guaranteed Result
With quality control checks during the entire conversion, Tech Logic ensures every item will be tagged correctly before the job is complete.

Learn more about rfidTAG TEAM


What’s included?
Tech Logic will make sure RFID conversion is completed on-time, on-budget, and in-sync with other project elements. We will provide technicians and a project manager on-site for a completion timeline that corresponds with project scope. All conversion equipment (except the tags themselves), project and personnel management, quality control, and shipping are covered in the quoted price.

Will it impact library operations?
Tagging the shelved collection should not impact patrons’ use of the library. The mobile conversion stations are no more intrusive than a staff member pushing a book truck around the stacks to re-shelve items. Tech Logic can coordinate tagging after hours or during library open hours. Most customers choose to have us complete tagging during open library hours, for cost effectiveness. If completed after hours, the library will only need to provide any desired library security or oversight for our staff working in closed buildings. Behind the scenes, the library should anticipate having a staff member to coordinate with the tagging team about processes and handle any questions that may arise. The library will also need to coordinate with the tagging team to handle returned materials before they are re-shelved.

What’s the process?
Technicians simply place the RFID tag onto the antenna, scan the item’s barcode, and apply the tag to the item. If the library desires, we can use a library-supplied weed list to identify and isolate candidates for weeding while we tag. To calculate an estimate for the length of time to tag a location, we plan for each person (or pair) to tag 300-400 items per hour for books and 100 items per hour for CDs and DVDs using full-overlay AV tags. These figures, as well as library goals and timeline parameters, determine the size of the tagging team. In addition, 80% of a library collection is typically on the shelves at any given time; 20% is in circulation to be tagged on return. All new materials should be tagged during processing.

What about our other RFID equipment?
Until the tagging process is completed at a given location, that library should continue to operate as it currently does—using barcode technology to check out items. Once the tagging conversion is complete, the RFID system (self-checkout, gates, staff stations, shelf management scanning) at that location can go live.
