selfCIRC PRIME

selfCIRC PRIME delivers the most customizable and user friendly patron self-service solution to your library.

With flexible form factors and a flexible interface to showcase your desired branding, workflow, and web-based signage and applications, selfCIRC PRIME will delight patrons with streamlined self service and much more.

Uniquely Yours
Every aspect—from the color of the unit to checkout workflow and more—can be customized to meet your library's goals.

Delight Your Patrons
With customizable workflow, aesthetics, digital signage, and applications, you can be sure to engage patrons with dynamic self-service experiences.

Web-Based Management
With baseCAMP, our web-based management portal, you can make changes to self-check units system wide, branch wide, or at the terminal level.

Learn more about selfCIRC PRIME

Standalone Kiosk
Desktop Kiosk
Kiosk Dimensions
H: 62.0"     W: 40.3"     D: 17.0"
H: 53.23"     W: 23.125"     D: 24.5"
Kiosk Weight
215 lbs.
170 lbs.
Power
110v AC
Data
RJ-45 Ethernet
Touchscreen
22" LED touchscreen (portrait orientation)
16:9 aspect ratio
Projective capacitive touchscreen
PC
Windows 10 IoT Enterprise 2019 LTSC 64-bit
Intel I-3, 8G RAM, 128GB SSD
RFID Equipment
13.56 MHz HR Reader (1w)
ISO 15693, ISO 18000-3
Multi-item capacity
Barcode Scanner
2-d imager, Smartphone enabled
All library barcode symbologies
Receipt Printer
High speed, 80mm thermal printer
Full/partial cut options
Credit/Debit Payment
    *Optional
VeriFone, Comprise
Cash/Coin Payment
     *Optional
Jamex Payment Unit
Unit Color Options
Stock and custom Pantone powder coating available
Custom vinyl wrapping available
Reporting and Management
Centralized administrative reporting and management included via
Tech Logic's central web-based application—baseCAMP
Learn more about optional pedestals for selfCIRC PRIME Desktop

Standard Pedestal
ADA Pedestal
Height Adjustable Pedestal
Pedestal Dimensions
H: 34.3"
W: 26.0"
D: 22.5"
H: 28.4"
W: 26.0"
D: 22.5"
H: 28.0 — 34.0"
W: 26.0"
D: 22.5"
Pedestal Weight
89 lbs.
72 lbs.
119 lbs.
Power
———
———
110v AC
Height Adjustable Switch
———
———
Single-touch toggle
For gentle, gradual adjustment
Unit Color Options
Stock and custom Pantone powder coating available
Custom vinyl wrapping available
Secure Connection to selfCIRC PRIME Kiosk
Eight (8) secure connection bolts per unit

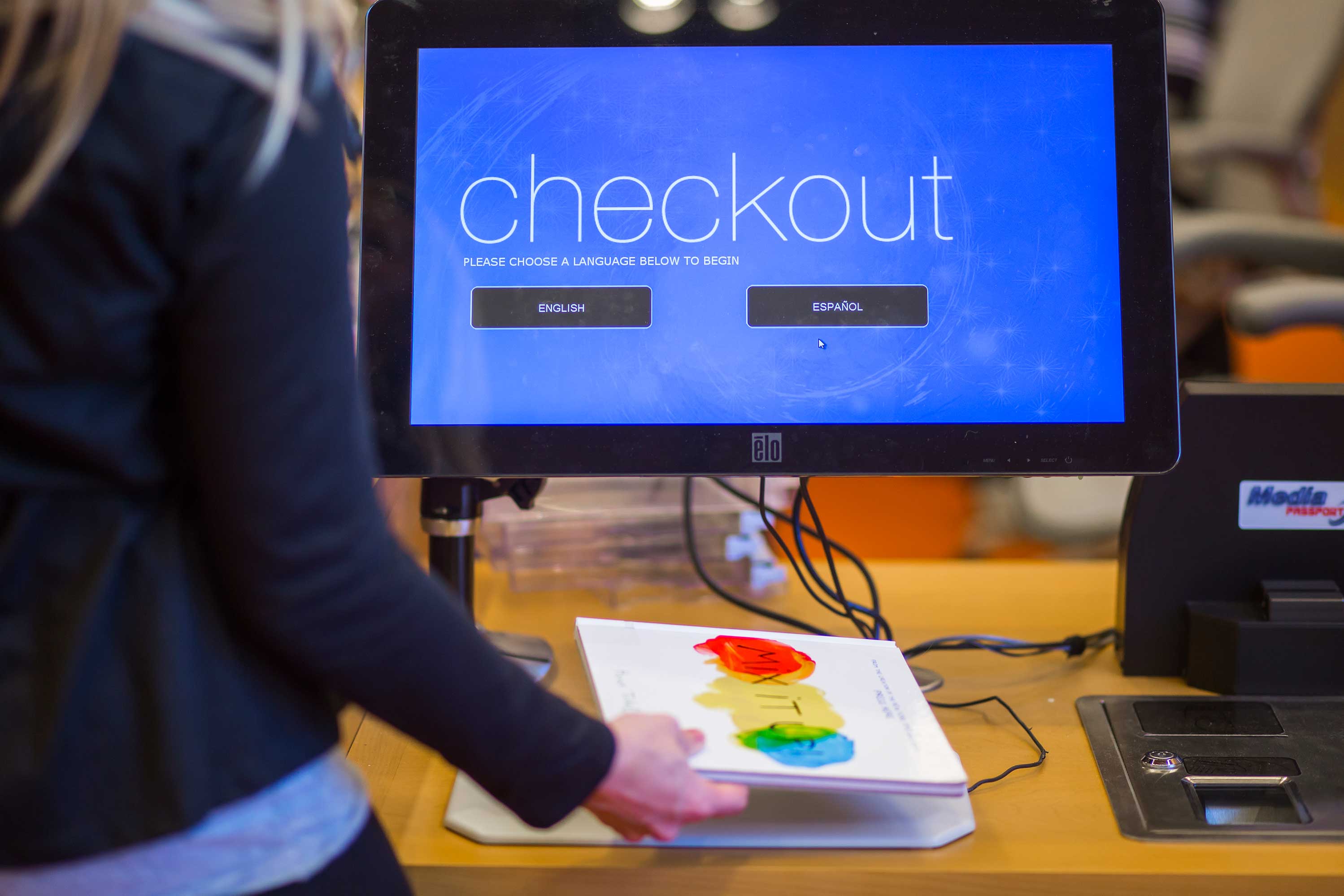

selfCIRC PRO

selfCIRC PRO is our most popular, most easily deployed, and most cost-effective patron self-service solution.

This component-based solution includes all required equipment: PC, touchscreen, receipt printer, barcode scanner, and RFID antenna (if needed). Alternatively, the library is welcome to provide its own peripheral hardware and Tech Logic can provide the software and, if needed, RFID equipment.

Flexible Components
The library is welcome to provide any of its own hardware (e.g. receipt printers, PCs), as long as the hardware meets minimum specifications.

Delight Your Patrons
With customizable workflow, aesthetics, digital signage, and applications, you can be sure to engage patrons with dynamic self-service experiences.

Web-Based Management
With baseCAMP, our web-based management portal, you can make changes to self-check units system wide, branch wide, or at the terminal level.

Learn more about selfCIRC PRO


The following outlines specifications of the equipment available from Tech Logic.

Data
RJ-45 Ethernet
Touchscreen
22" LED touchscreen (portrait orientation)
16:9 aspect ratio
Projective capacitive touchscreen
PC
Dell Optiplex SFF, i-5
4GB memory, 128 GB storage
Win10 Pro
RFID Equipment
13.56 MHz HF Reader (1.2w)
ISO 15693, ISO 18000-3
Multi-item capacity
Barcode Scanner
2-d imager, Smartphone enabled
All library barcode symbologies
Receipt Printer
High speed, 80mm thermal printer
Full/partial cut options
Credit/Debit Payment
    *Optional
VeriFone, Comprise
Cash/Coin Payment
     *Optional
Jamex Payment Unit
Reporting and Management
Centralized administrative reporting and management included via
Tech Logic's central web-based application—baseCAMP


The following table outlines minimum specifications for peripheral PCs should the Library decide to provide its own.

CPU / Memory (RAM) / Hard Disk
Dual Core / 4 GB / 100GB
Operating System
Windows 10 Pro 64-bit, or
Windows 10 Enterprise IOT LTSC
Additional Software
.NET Framework version 4.0 or newer
Microsoft Edge
Microsoft Message Queuing (MSMQ)
Networking
TCP/IP connectivity to the baseCAMP Web Application Server

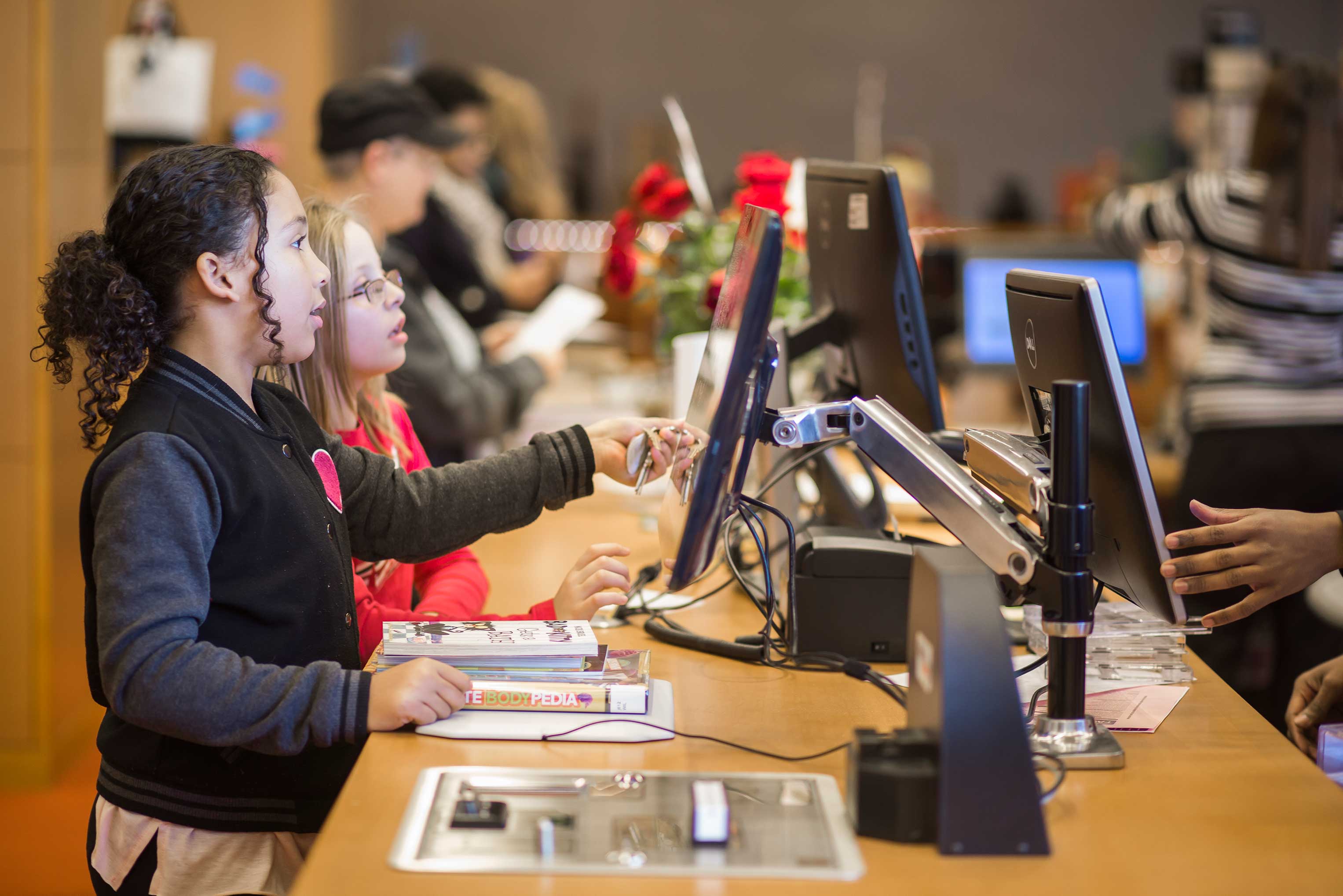

selfCIRC COMBO

With Tech Logic’s patented selfCIRC COMBO, deployed as a dual-monitor system in a staffed area, patrons accomplish self-checkout on their side of the service desk—unless they need staff assistance (for example, because of an ILS-related restriction).

If a patron needs assistance, staff are already in close proximity and can use the dual monitor to quickly and easily access the patron’s session and/or the ILS circulation interface. This way, staff can address the patron’s needs without the patron having to leave their self-service session.

Patented Workflow
selfCIRC COMBO’s workflow—providing a physical combination of independent self-service and, when needed, staff ILS access—is offered exclusively by Tech Logic.

Delight Your Patrons
With customizable workflow, aesthetics, digital signage, and applications, you can be sure to engage patrons with dynamic self-service experiences.

Web-Based Management
With baseCAMP, our web-based management portal, you can make changes to self-check units system wide, branch wide, or at the terminal level.

Learn more about selfCIRC COMBO
Data
RJ-45 Ethernet
Touchscreen
     Self-Service terminal
22" LED touchscreen (landscape or portrait orientation)
16:9 aspect ratio
Projective capacitive touchscreen
Non-Touchscreen
     Staff Station terminal
22" LED touchscreen (landscape or portrait orientation)
16:9 aspect ratio
PC
Windows 10 IoT Enterprise 2019 LTSC 64-bit
Intel I-3, 8G RAM, 128GB SSD
RFID Equipment
13.56 MHz HR Reader (1.2w)
ISO 15693, ISO 18000-3
Multi-item capacity
Barcode Scanner
2-d imager, Smartphone enabled
All library barcode symbologies
Receipt Printer
High speed thermal printer
Full/partial cut options
Credit/Debit Payment
    *Optional
VeriFone, Comprise
Cash/Coin Payment
     *Optional
Jamex Payment Unit
Reporting and Management
Centralized administrative reporting and management included via
Tech Logic's central web-based application—baseCAMP

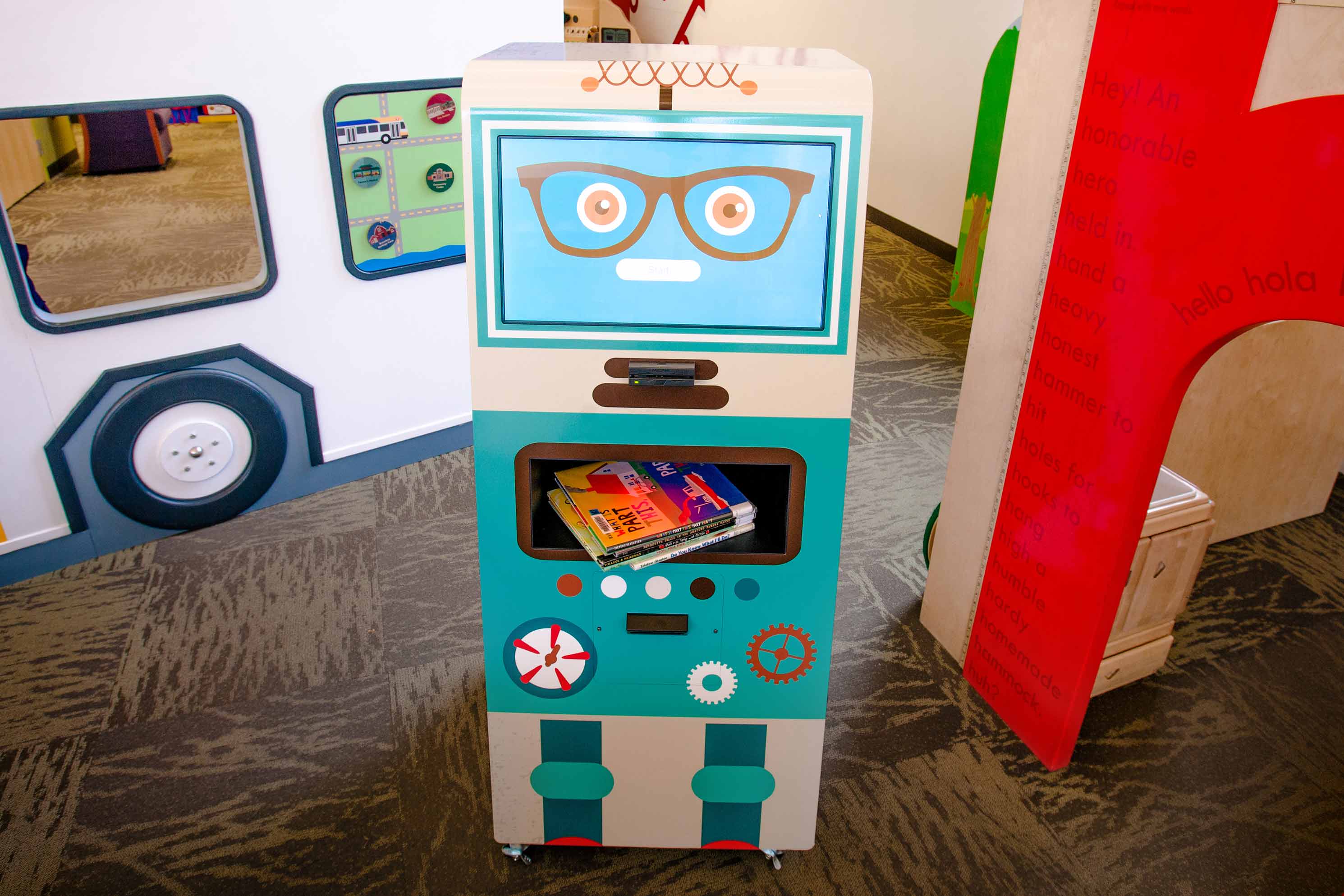

selfCIRC KIDS

selfCIRC KIDS is designed specifically for your younger library patrons. Tech Logic’s unique RFID cutout offers easier access while delivering superior readability for children’s materials.

The exterior body of selfCIRC KIDS offers custom vinyl-wrapped designs to compliment your children’s reading area.

Uniquely Yours
Every aspect of selfCIRC KIDS—from the color of the unit to checkout screenflow and more—can be customized to meet your library's goals.

Delight Your Patrons
With customizable workflow, aesthetics, digital signage, and applications, you can be sure to engage patrons with dynamic self-service experiences.

Web-Based Management
With baseCAMP, our web-based management portal, you can make changes to self-check units system wide, branch wide, or at the terminal level.

Learn more about selfCIRC KIDS
Kiosk Dimensions
H: 53.23"     W: 23.125"     D: 24.5"
Kiosk Weight
170 lbs.
Power
110v AC
Data
RJ-45 Ethernet
Touchscreen
22" LED touchscreen (portrait orientation)
16:9 aspect ratio
Projective capacitive touchscreen
PC
Windows 10 IoT Enterprise 2019 LTSC 64-bit
Intel I-3, 8G RAM, 128GB SSD
RFID Equipment
13.56 MHz HR Reader (1w)
ISO 15693, ISO 18000-3
Multi-item capacity
RFID Shelf Dimensions
H: 6.0"     W: 16.0"     D: 12.0"
Barcode Scanner
2-d imager, Smartphone enabled
All library barcode symbologies
Receipt Printer
High speed, 80mm thermal printer
Full/partial cut options
Credit/Debit Payment
    *Optional
VeriFone, Comprise
Cash/Coin Payment
     *Optional
Jamex Payment Unit
Unit Color Options
Stock and custom Pantone powder coating available
Custom vinyl wrapping available
Reporting and Management
Centralized administrative reporting and management included via
Tech Logic's central web-based application—baseCAMP
selfCIRC LOCKER

Tech Logic's selfCIRC LOCKER offers a secure and convenient connection point between the library and patrons. Customize your locker system for your community and reach them at their convenience with safe, secure, 24/7 access to holds pickup and item return.

Powerful ILS Integration
When it comes to circulation, the library's ILS is in charge. selfCIRC LOCKERS work within the business rules of the ILS, serving as a convenient option for patrons and providing powerful monitoring and reporting tools for staff.

Secure and Reliable
Uninterruptable power supply, professional-grade concealed hinges, tamper-proof doors, and other features protect library items and preserve the patron's trust. selfCIRC LOCKERS are modular, offering up to 144 individual units per kiosk and various other hardware features and configurations to address a broad spectrum of library needs and goals.

Web-Based Management
Our central management interface—baseCAMP—equips staff with powerful tools to manage selfCIRC LOCKERS from any PC or tablet with access (including remote access) to the library network.

Learn more about selfCIRC LOCKERS
Power
120v AC
Data
RJ-45 Ethernet
Dimensions
     per column
H: 77.5"     W: 18.0"    D: 25.5
Locker Compartment Options
(A)     H: 5.0"         W: 13.5"     D: 24.13"
(B)     H: 11.25"     W: 13.5"     D: 24.13"
Additional Hardware Options
Returns bin
90º Corner Configuration unit
Colors
Available in multiple colors and wood-grain finishes
Environmental and Structural Requirements
Please reach out to us for specific parameters regarding your project
selfCIRC is powered by baseCAMP

Tech Logic’s baseCAMP, included at no additional cost for Tech Logic customers, is a web-based application that empowers library staff to manage Tech Logic systems and access statistical reports—all from any PC or tablet with access (including remote access) to the library network.
